Churchill 5 Convection DC

*

Wood Stove

Air Wash System

Three Flow Air System

Closed Combustion Capable

Contemporary Stove

Freestanding Stove

Suitable for 12mm Floorplate

Steel Body Construction

Cast Iron Door

Full Convection Stove

Low VOC Paint

Ecodesign Ready

Smoke Control Certified

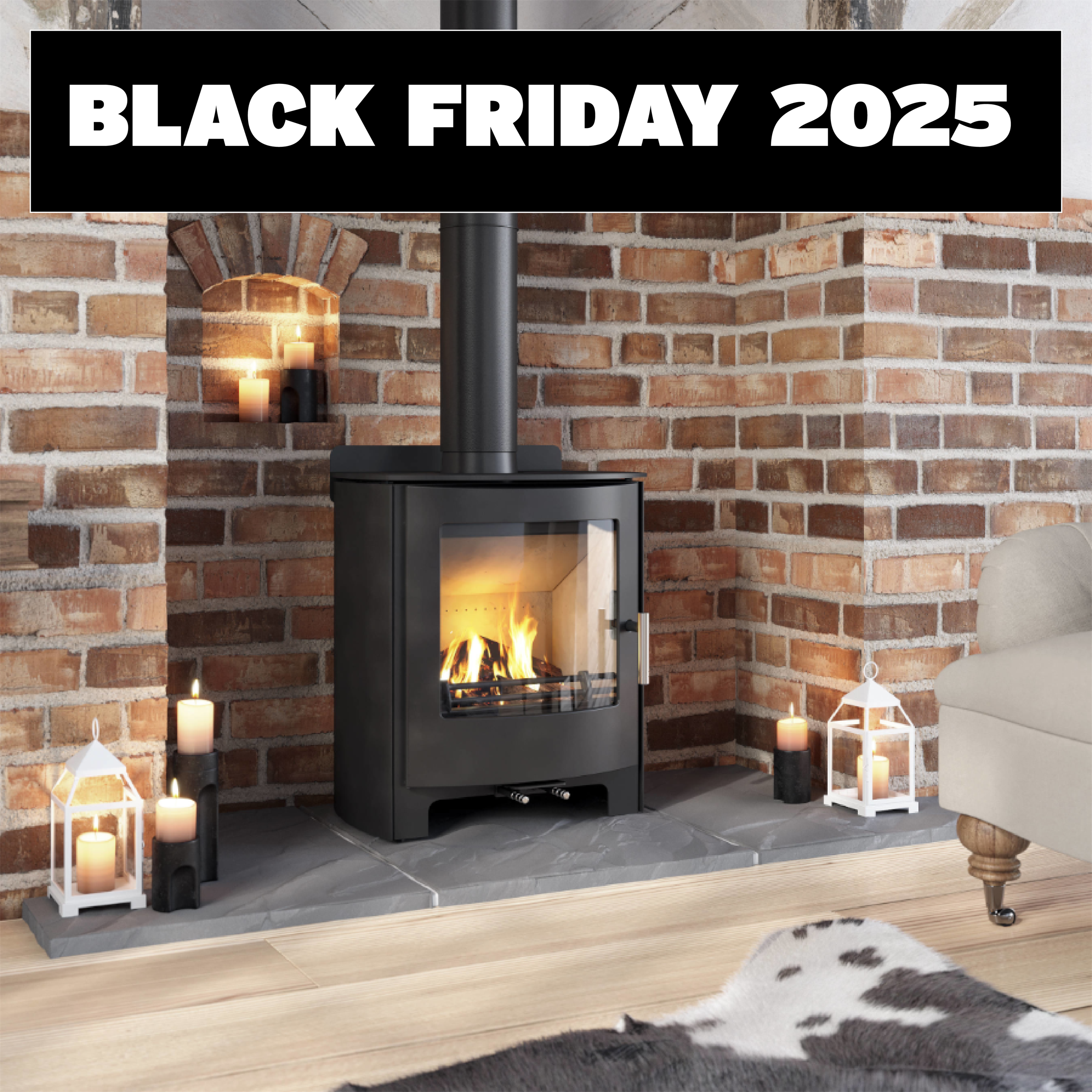

The Churchill 5 Dual Control features a beautiful cast iron curved door, skillfully crafted to perfectly fit the body of the stove. Its large glass area and impressive efficiency figures make it the ideal modern stove for your home.

With new dual air controls, you can even more precisely control the amount of air coming into the fire chamber to allow you to operate it most effectively.

Ideal for making a focal point in any space, the Churchill 5 Convection Dual Control features contemporary curved convection panels which lower the distance to combustibles to the sides of the stove to 150mm, making it perfect for open-plan living. A+ rated for energy efficiency, it offers multi-fuel burning, closed combustion for better efficiency and a contemporary freestanding design that complements all decors and property styles.

Emitting a nominal heat output of 5kW, safety tested to be installed on a glass floorplate, and with an 80mm direct air spigot the Churchill 5 will create a focal point in your room.

Ideal for city dwellings - this stove has been approved by DEFRA to burn wood and smokeless fuels in smoke control areas.

ENERGY RATING:  A Energy Rating Arrow     Product Fiche

The Churchill 5 is Eco-design compliant. Eco-design is a European-wide programme to lower emissions, which came into force in the UK in 2022. Setting the standard for environmentally friendly stoves.

Find spare parts for this stove here.

M00522-00-00-00-03

Products specifications

Height 614mm
Width 549mm
Depth 388mm
Weight 113kg
Fuel Type MF - Wood & Smokeless Fuels
Flue outlet size 125 mm
Nominal Output W 5kW / C 4.9kW
Output Range 3-6kW
Ecodesign Ready YES
Energy Rating A+
Efficiency W 79.5% C 76.5%
CO @ 13% W 0.09 C 0.08
Particulates mg/mo3 @13% W 27 C 17
Maximum log length 35cm
Distance to combustibles rear with collar convector fitted 75mm
Distance combustible materials side 150mm
Distance to centre of top flue outlet from back of stove 130mm
Height to centre of rear outlet 512mm
Colour Black
Optional closed combustion Yes
Closed Combustion Outlet Size 80mm ø
Smoke Control Yes
Suitable for glass floor plate YES
