Loxton 5 DC

*

Multifuel Stove

Air Wash System

Three Flow Air System

Closed Combustion Capable

Traditional Style Stove

Freestanding Stove

Suitable for 12mm Floorplate

Steel Body Construction

Cast Iron Door

Convection Top  Plate Stove

Low VOC Paint

Ecodesign Ready

Smoke Control Certified

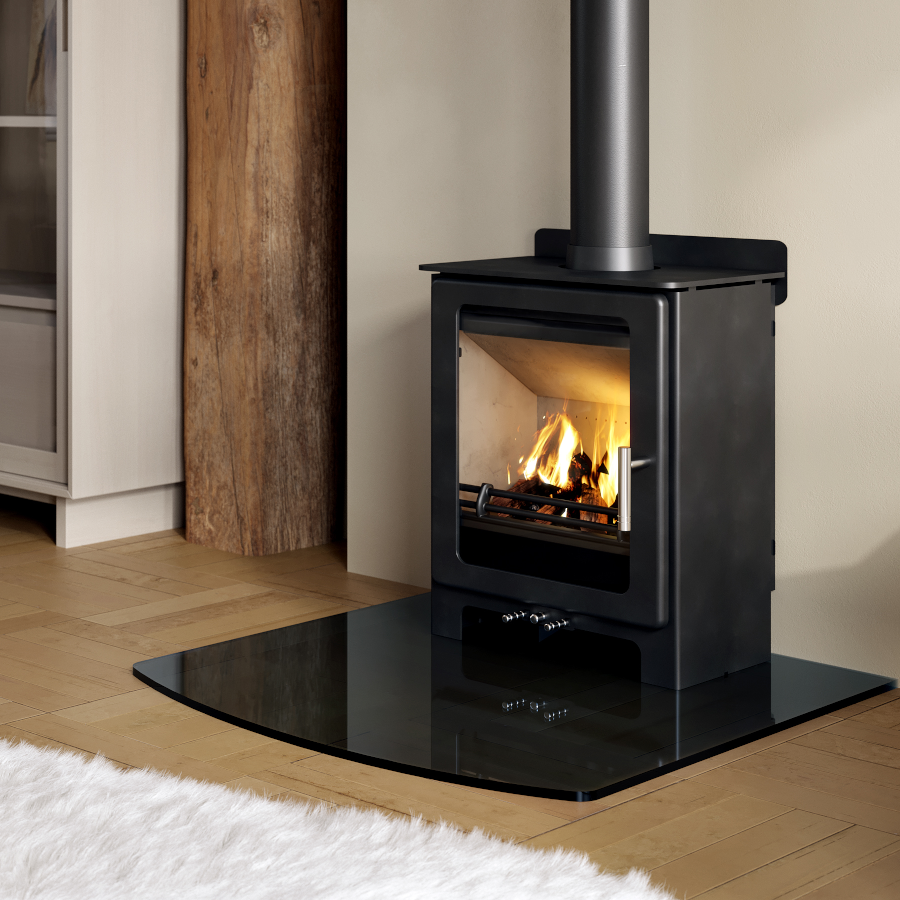

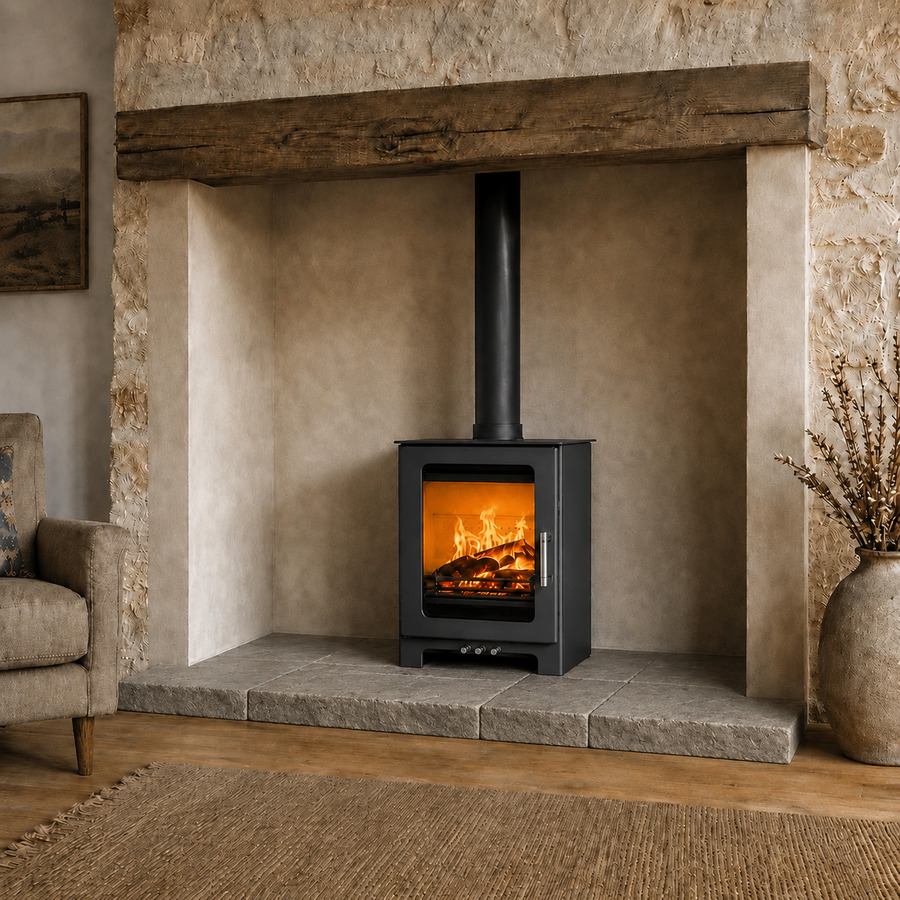

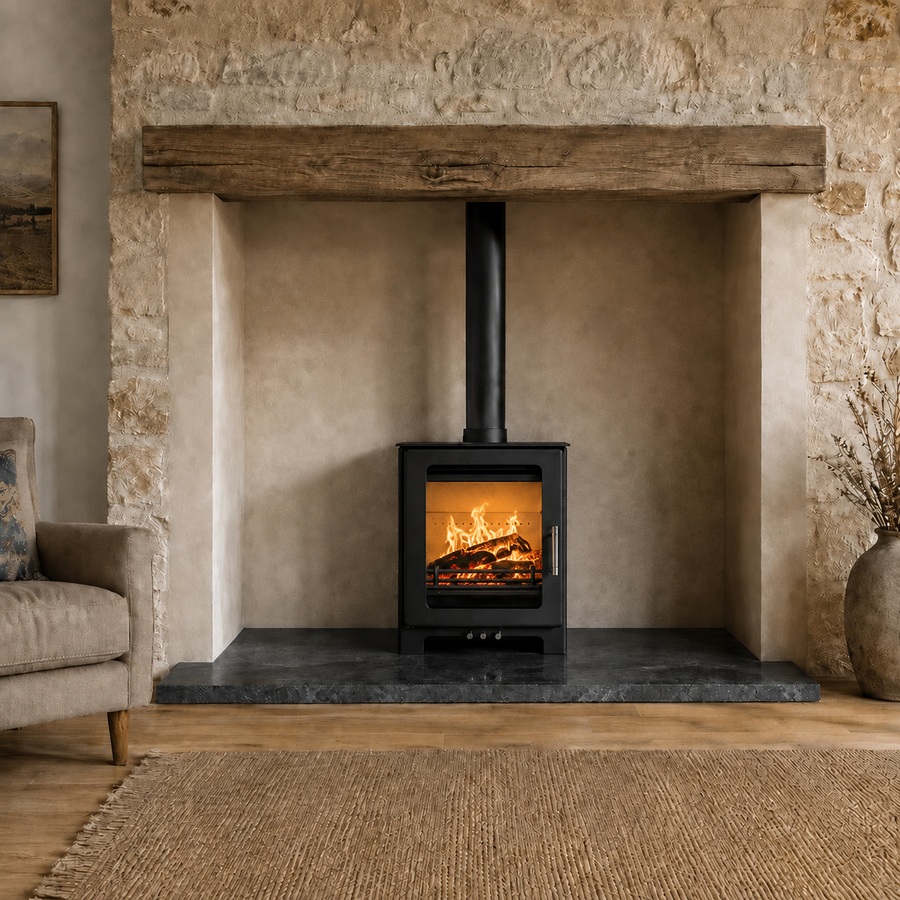

The new 5kW Dual Control (DC) model further evolves the concept behind the Loxton, with a carefully crafted cast iron door, turn-to-open handle and new larger glass area, the Loxton 5 DC sits perfectly in both contemporary and traditional homes.

Keeping many of the traits of the rest of the range such as pre-heated secondary air wash to keep the glass clean and free of deposits feeding the air directly back into the heart of the fire. The Loxton DC model, like its larger 8-and-10kW siblings, is also designed with an external air connection, which allows all the combustion air to come through an 80mm pipe that connects to the rear of the appliance.

ENERGY RATING: A Energy Rating Arrow      Product Fiche

The Loxton 5 is Eco-design compliant. Eco-design is a European-wide programme to lower emissions, which came into force in the UK in 2022. Setting the standard for environmentally friendly stoves.

Find spare parts for this stove here.

M00500-00-00-00-06

Products specifications

Height 614mm
Width 505mm
Depth 332mm
Weight 94kg
Fuel Type MF - Wood & Smokeless Fuels
Flue outlet size 125 mm
Nominal Output W: 5kW / C: 4.9kW
Output Range 3-6kW
Ecodesign Ready YES
Energy Rating A+
Efficiency W: 79.5% / C: 76.5%
CO @ 13% W 0.09 / C 0.08
Particulates mg/mo3 @13% W 27 C 17
Maximum log length 350mm
Distance to combustibles rear with collar convector fitted 75mm
Distance combustible materials side 350mm
Distance to combustibles side with side convection panel fitted 250mm
Distance to centre of top flue outlet from back of stove 130mm
Height to centre of rear outlet 512mm
Colour Black
Optional closed combustion Yes
Smoke Control Yes
Closed Combustion Outlet Size 80mm ø
Suitable for glass floor plate YES
