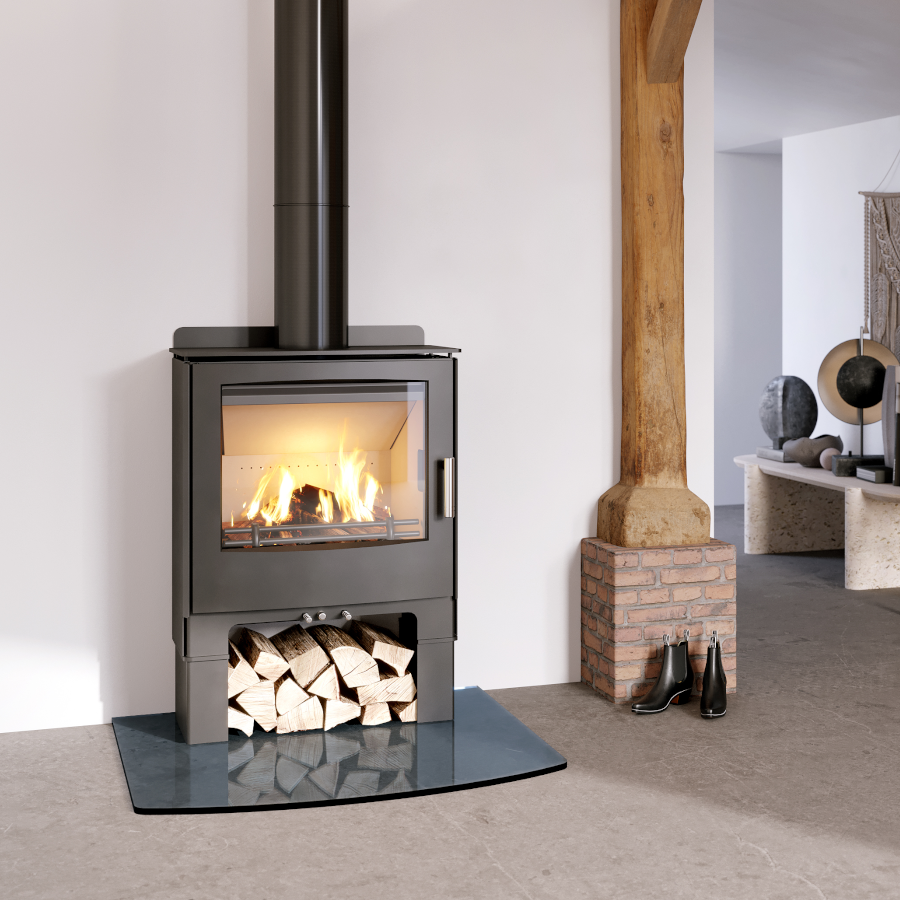

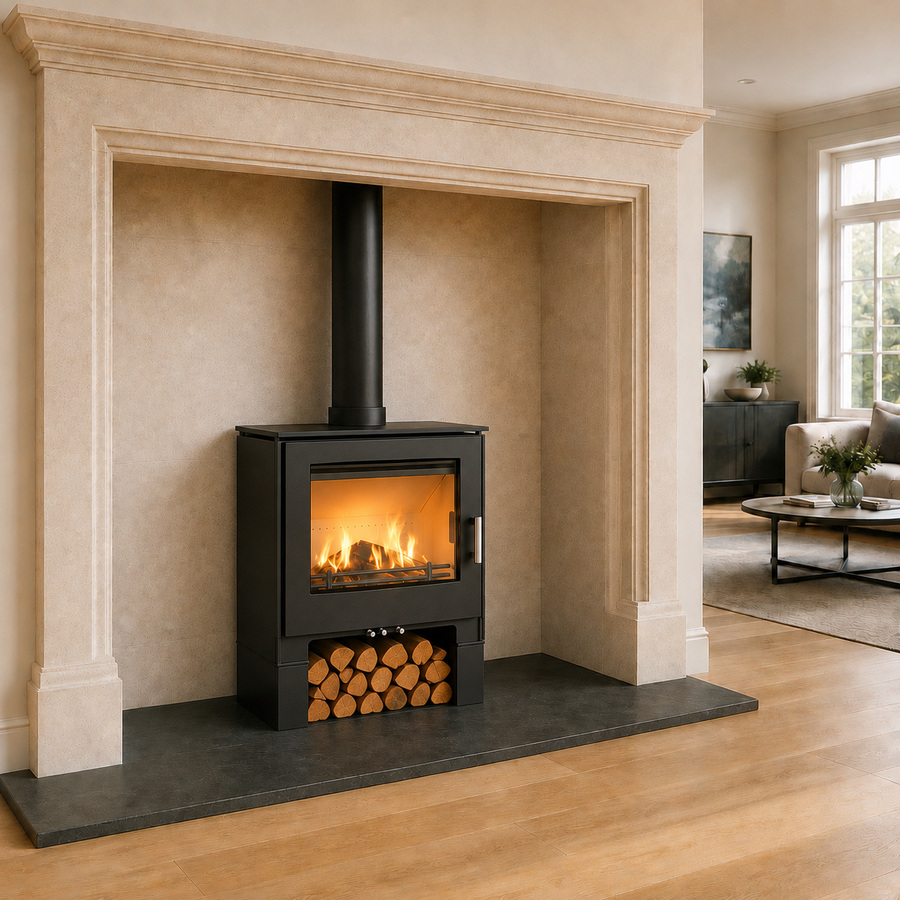

Woodland Convector Plus Logstore DC (CG)

*

Multifuel Stove

Air Wash System

Three Flow Air System

Closed Combustion Capable

Contemporary Stove

Freestanding Stove

Suitable for 12mm Floorplate

Steel Body Construction

Cast Iron Door

Full Convection Stove

Low VOC Paint

Ecodesign Ready

Smoke Control Certified

The Woodland Convector Plus Logstore DC (CG) combines award-winning British design with efficient multifuel performance, enhanced convection and the convenience of integrated log storage. Designed in Somerset, the Woodland was named Best 5kW Stove at both the Hearth & Home Awards and the Build It Awards in 2016. Suitable for burning wood and smokeless coal, it provides greater flexibility when choosing your fuel.

The Convector Plus model features additional side convector panels, working together with convection channels around the sides, rear and top of the appliance. This advanced system creates a natural flow of warm air and improves heat circulation throughout the room, delivering even better convection performance. It also helps achieve excellent distances to combustible materials, requiring only 75mm at the rear and 100mm at the sides.*

The integrated logstore raises the combustion chamber to provide an improved view of the flames, while creating a practical space for storing logs beneath the stove. An optional 8mm Logstore base plate is also available, providing a neat foundation and completing the appearance of the installation.

Its straightforward dual-control air system provides precise control over combustion and heat output. Preheated tertiary air supports the secondary combustion of flue gases, helping to extract more energy from the fuel and produce a cleaner, more efficient burn. A powerful preheated airwash system also helps keep the large glass window clear.

The generously sized firebox accommodates standard-cut logs and features a full cast-iron grate together with a vertically ribbed rear cast panel, creating a stronger and more robust combustion chamber. Constructed with a high-quality steel body and durable cast-iron door, the Woodland Convector Plus Logstore DC (CG) delivers a nominal heat output of 5.0kW and combines effective room heating with distinctive British design.

*Always refer to the installation instructions for the applicable minimum distances and installation requirements.

ENERGY RATING:  A Energy Rating Arrow     Product Fiche

The Woodland is Ecodesign compliant. Eco-design is a European-wide programme to lower emissions, which came into force in the UK in 2022. Setting the standard for environmentally friendly stoves.

Find spare parts for this stove and previous models here

M00538-00-00-00-01

Products specifications

Height 775mm
Width 570mm
Depth 340mm
Weight 139kg
Flue outlet size 125 mm
Nominal Output 5.0kW
Ecodesign Ready YES
Energy Rating A+
Efficiency W 79.5% C 76.5%
CO @ 13% W 0.09% C0.08%
Particulates mg/mo3 @13% W 27 C 17
Maximum log length 300mm
Distance combustible materials rear 75mm
Distance combustible materials side 100mm
Distance to centre of top flue outlet from back of stove 130mm
Height to centre of rear outlet 680mm
Colour BLACK
Optional closed combustion Included
Closed Combustion Outlet Size 80mm ø
Smoke Control YES
Suitable for glass floor plate YES
En 13240
Recommended heat area up to 60m2
